\n\nBLUETTI RVSolar vs EcoFlow Power Kit
\n\nSummary: Bluetti delivers higher output, longer cycle life, tighter integration, and IP65-rated components, while EcoFlow provides higher solar and alternator input potential.
\n| Specification | \nBLUETTI RVSolar 48V | \nEcoFlow 5kVA Power Kit | \n
|---|---|---|
| System Voltage | \n48V (51.2V nominal) | \n48V (51.2V nominal) | \n
| Inverter Output | \n\n5,000W Pure sine, 5kW continuous.\n | \n\n4,000W Pure sine, 4kW continuous.\n | \n
| AC Input / Shore Power | \nUp to 5,000W (Watts = Real Power) | \n5,000VA Max (VA = Apparent Power) | \n
| Solar Charging Input | \nUp to 1,800W (12–50V, 50A) | \n7,200W Max (3 MPPT: 4,000W + 1,600W + 1,600W) | \n
| Alternator Charging | \nUp to 1,200W (12/24V Vehicle Input) | \nUp to 4,800W (13–60V, 60A/30A/30A) | \n
| DC Output | \n1,360W Max (12V) / 1,620W Max (24V) | \n1,300W Max (12V) / 1,600W Max (24V) | \n
| Battery Capacity | \n16kWh (51.2V, 314Ah) | \n5.12 kWh (51.2V, 100Ah) | \n
| Cycle Life | \n6,000+ cycles up to 70% capacity | \n3,500 cycles up to 80% capacity | \n
| Battery IP Rating | \nIP65 (dust-tight, water-jet resistant) | \nIP54 (limited dust, splash resistant) | \n
| Operating Temp | \n–4°F to 131°F (self-heating) | \n–4°F to 122°F (self-heating) | \n
BLUETTI 16kWh RVSolar 48V Power System

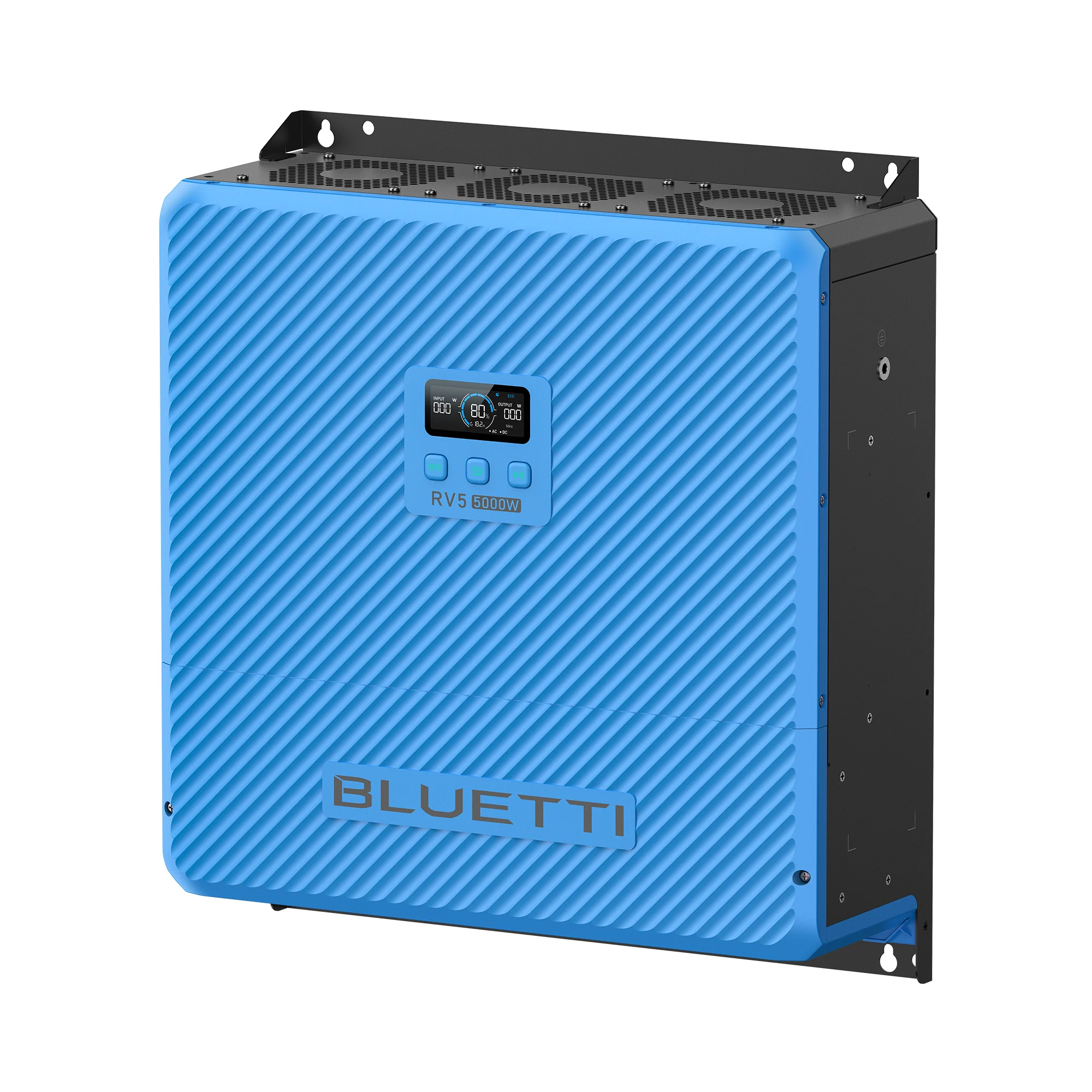

BLUETTI RV5 RVSolar 48V Power System — 5,000W continuous output with long-life LiFePO4 batteries. Charge from shore, solar, or alternator and power real loads like A/C, cooking, and charging through the integrated AC/DC distribution.
Series Wiring Notes:
This kit includes multiple short and long battery cables to support a range of physical battery layouts when wiring four 12V batteries in series to create a 48V battery bank. The quantity and length combinations provided intentionally exceed the minimum required so installers can select the appropriate cables for their specific spacing, orientation, and routing needs.
Cable color does not determine electrical polarity in a series configuration. In a series battery bank, interconnect cables may be red or black depending on layout. Electrical polarity is defined by the battery terminals being connected (+ to –), not by cable color.
WARNING: Improper battery wiring can cause equipment damage, fire, serious injury, or death. Installation must follow manufacturer instructions and be performed by a qualified technician.
All the power. Half the hassle. Expert advice + after-sale support.
5,000W continuous output, LiFePO4 longevity, shore/solar/alternator charging—built for real life on the road.

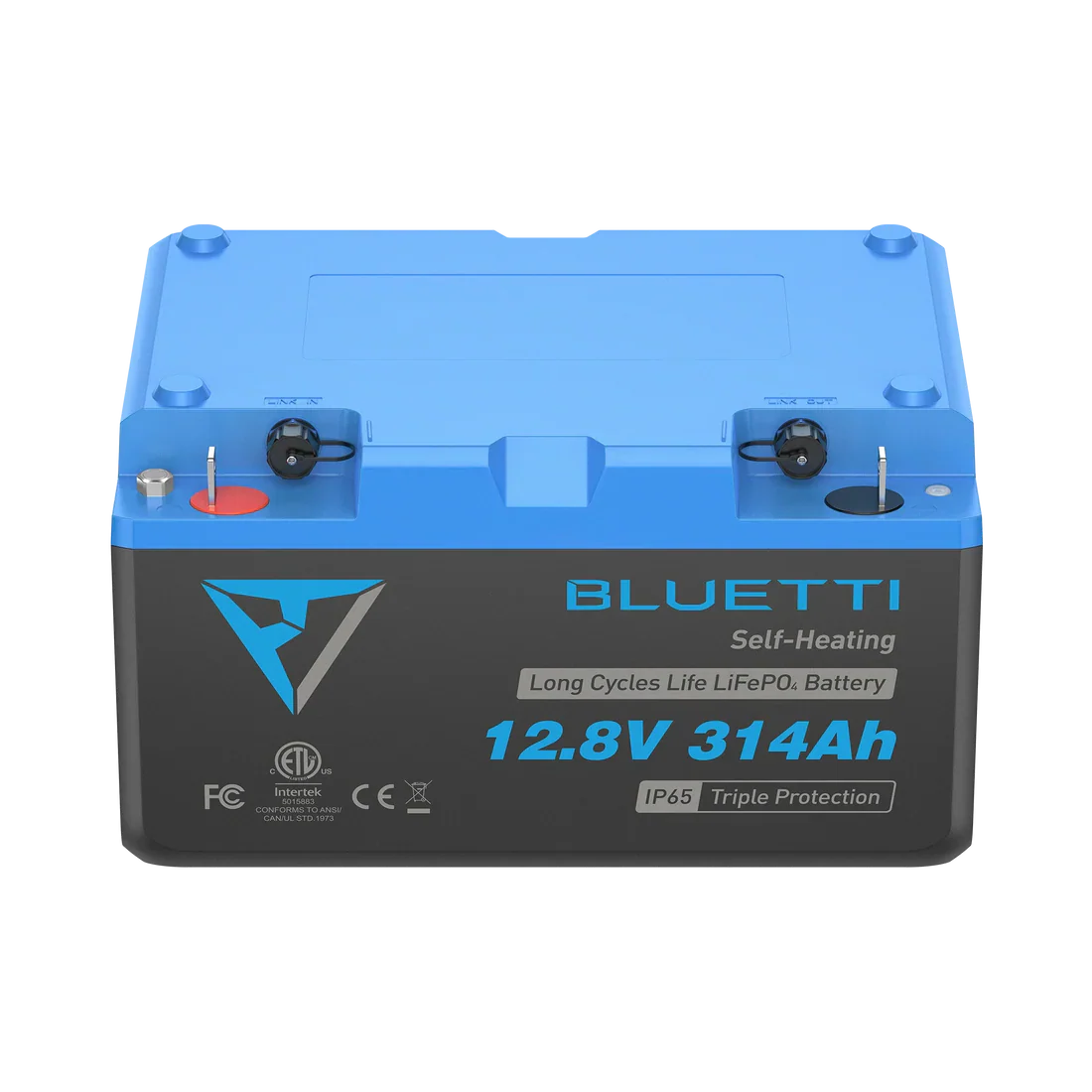

The battery bank consists of four 12V LiFePO₄ batteries that will need to be wired in series, creating a 48V / 16 kWh system that serves as the core of the power platform. From this 48V foundation, the RV5 Power Hub converts and delivers 120V AC, and 12V / 24V DC through the integrated AC/DC distribution panel.
Thanks to the high output of the system, standard 120V or 12V air conditioners can be operated through the distribution panel.
However, because the battery bank itself operates at 48V, selecting a 48V air conditioner provides the highest efficiency and lowest conversion loss.
A 48V air conditioner can be wired directly to the 48V battery bank, bypassing the distribution panel entirely. This configuration:
-
Reduces current and heat buildup
-
Minimizes power conversion losses
-
Improves performance in high heat or extended off-grid scenarios
And despite bypassing the RV5 Power Hub, the Epad continues to receive data directly from the battery BMS, meaning it still displays:
-
Correct state of charge
-
Accurate remaining runtime
The only limitation is that real-time watt draw of the 48V A/C will not appear on the Epad screen, though SOC and runtime tracking remain fully accurate.
No more “one-at-a-time”
5,000 W to run A/C, microwave, coffee maker—simultaneously.
10+ years of power
LiFePO4 cells rated for 6,000+ cycles keep you rolling for the long haul.
Charge anywhere
Solar up to 1,800 W • Alternator up to 1,200 W • Shore up to 5,000 W.
Weekend-friendly install
Plug-and-play design—no electrical degree required.
Generator-free peace
Quiet, fume-free, low-maintenance. Enjoy the silence.
Travel with confidence
UL-certified, IP65 water-resistant. Built for bumps and spills.
Smart control
Monitor & manage on Epad or the BLUETTI app—anywhere.
Stop rationing power. Goodbye power anxiety.
5,000 W continuous output feels like home—A/C + cook + charge at once. B4810 LiFePO4 delivers 6,000+ cycles and self-heating for cold starts. Just 7 W standby keeps every charge going further.
Fast, flexible charging for non-stop adventure
Up to 5,000 W from shore, 1,800 W from the sun, and 1,200 W from your alternator while driving. Keep moving—don’t babysit a battery.
True tranquility, powered by safety
LiFePO4 chemistry + UL certification = quiet confidence for families and pets. No fumes, no fuss—just power.
Smart-home vibes, open-road ready
An HD Epad touchscreen centralizes power flows, battery status, and inputs. Prefer your phone? The BLUETTI app has you covered.
Tech Specs — RV5 Power Hub
Tech Specs — B1232 Battery
Downloads
