Go Power 30 Amp Solar Controller Dual Bank Bluetooth - GP-PWM-30-UL

This Bluetooth® enabled 30 Amp digital solar controller protects the life of your solar battery, whether it's Lithium, AGM, or Lead Acid.

Features:

• Dual Bank capable
• Bluetooth ready; used the Go Power! Connect app (Click here for more info)
• 12 volt flush mounted PV charge controller rated for a continuous solar current input of 30 amps.
• Uses pulse width modulation (PWM) technology
• Unique four stage charging system with optional equalize setting, to charge and protect your battery bank
• LCD digital display that shows solar array charge current, system battery voltage and battery capacity
• Built-in USB charge port
• Connects up to 600 watts of solar
• Charges 1 or 2 battery banks
• Remote on/off control of select Go Power! ISW inverters
• 5 year warranty

Using Go Power! Connect, you can connect to your PWM-30-UL controller to:

• • Set the battery type and charging profile
  • Turn your compatible Go Power! ISW Inverter on or off
  • Toggle Maximum Power Boost mode
  • View essential battery stats, including:
    • Battery Voltage
    • PV Charging Current
    • Battery State of Charge (SOC)

Maximum Power Boost Technology

Our 30 Amp Digital Solar Controller features Maximum Power Boost Technology (MPBT). This allows you to override the normal charging algorithm of the solar controller to 'boost' the solar charge, which is ideal at the end of the daylight to ensure batteries are topped up for the evening. Performance of the solar controller will not be affected if MPBT function is not utilized.

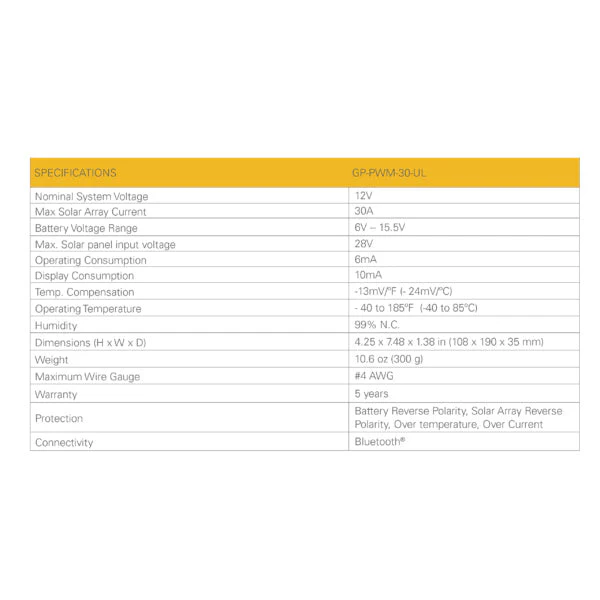

Specs

Nominal System Voltage	12V
Max Solar Array Current	30A
Battery Voltage Range	6V — 15.5V
Max. Solar panel input voltage	28V
Operating Consumption	6mA
Display Consumption	10mA
Temp. Compensation	-13mV/ºF / – 24mV/ºC
Operating Temperature	– 40 to 185ºF / – 40 to 85ºC
Humidity	99% N.C.
Dimensions (H x W x D):	4.25 x 7.48 x 1.38 in; 108 x 190 x 35 mm
Weight	10.6 oz; 300 g;
Maximum Wire Gauge:	#4 AWG
Warranty	5 years
Protection	Battery Reverse Polarity, Solar Array Reverse Polarity, Over temperature, Over Current

Battery Charging Profile	Sealed/Gel	AGM	Flooded	LifePO4
Bulk Charge Voltage Set Point	14.1V	14.4V	14.4V	Disabled
Absorption Charge Voltage (30 min / day)	14.1V	14.4V	14.4V	14.4V
Max. Power Boost Charge Voltage: Automatic (2h if V < 12.3V)	14.1V	14.4V	14.4V	Enabled
Max. Power Boost Charge Voltage: Manual (2h if activated)	14.1V	14.4V	14.4V	Enabled
Float Charge Voltage	13.7V	13.7V	13.7V	14.0V
Equalize Charge Voltage (2h / 28 days or after V < 12.1V)	Disabled	Disabled	14.4V	Disabled
